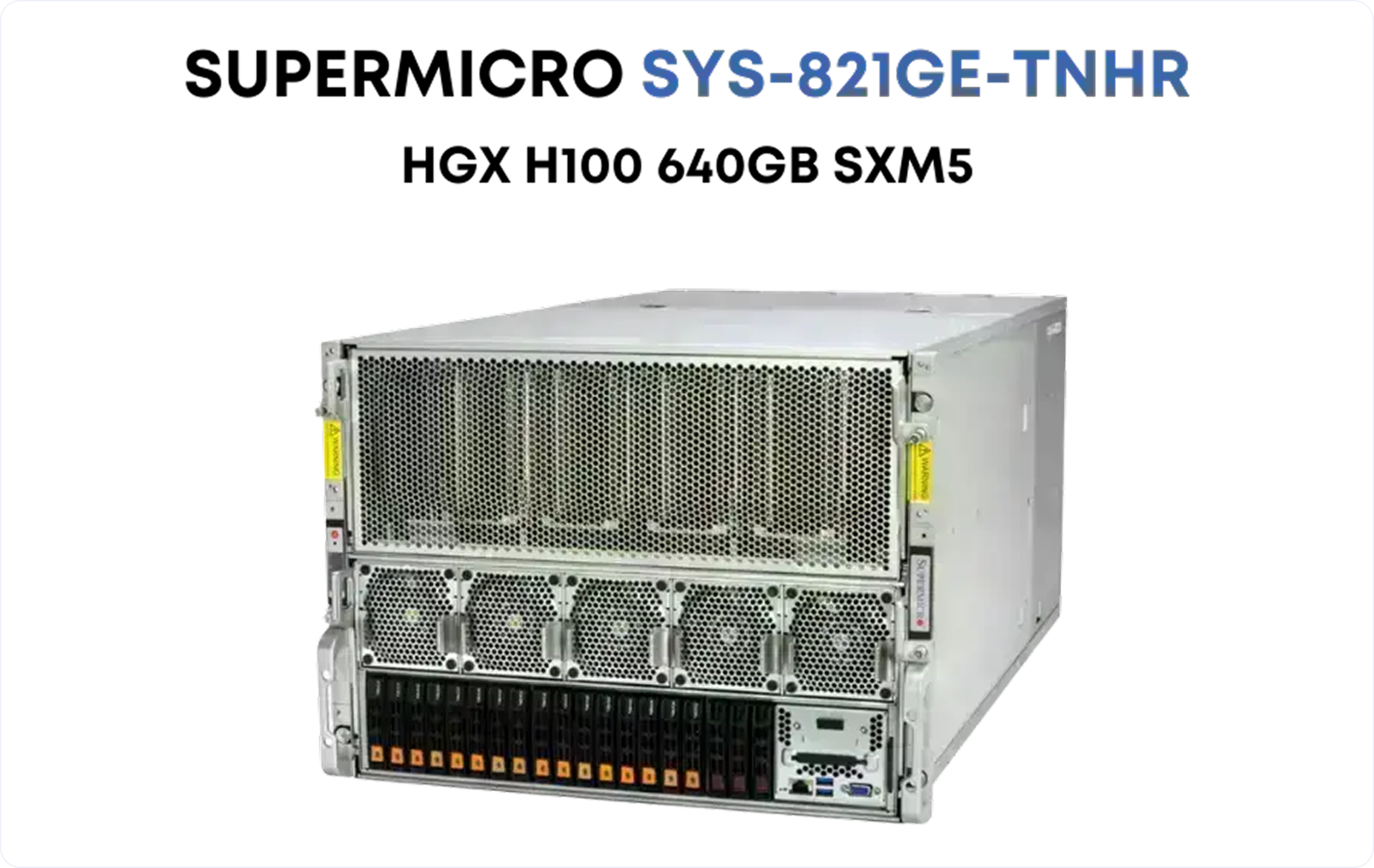

SuperMicro SuperServer SYS-821GE-TNHR SXM5 640GB HGX H100
Get this product for
Key Features
System: Supermicro – 821GE-TNHR
- CPU: SPR 8468V 2P 48C 2.4G 330W (2.1/300,1.8/270) 97.5MB
- Memory: 64GB 4800MHz DDR5 ECC RDIMM
- SSD: SSD 2.5″ SATA 480GB >1DWPD TLC E, 7mm
- NVMe SSD: SSD 2.5″ NVMe PCle4 7.6TB 1DWPD TLC D, 15mm
- GPU: NVIDIA DELTA-NEXT HGX GPU Baseboard, 8 H100 80GB SXM5
- Network Card: Nvidia 900-9X766-003N-SQ0 PCle 1-port IB 400GE OSFP
- AOC: Std LP 2-port 10G RJ45, Intel X550
- TPM: Supermicro -SPI TPM2.0 using SLB9670
- OOB : (Supermicro Management Software Suite Node License)
- Kit: SOCKET E LGA4677, E1A XCC CARRIER,DG 1.0, RoHS
- Warranty: 3 Years Return to Base Warranty
The Supermicro 821GE-TNHR System
Supermicro introduces the 821GE-TNHR, a system that sets new standards in performance and reliability. This powerhouse is equipped with a cutting-edge SPR 8468V 2P 48C 2.4G CPU, boasting an impressive 97.5MB cache and the ability to handle up to 330W (2.1/300,1.8/270) TDP. The 64GB 4800MHz DDR5 ECC RDIMM ensures lightning-fast and reliable memory performance, while the SSD 2.5″ SATA 480GB and SSD 2.5″ NVMe PCle4 7.6TB deliver versatile storage solutions. With the NVIDIA DELTA-NEXT HGX GPU Baseboard featuring 8 H100 80GB SXM5 GPUs, this system caters to demanding graphics and computational workloads. The inclusion of the Nvidia 900-9X766-003N-SQ0 PCle 1-port IB 400GE OSFP Network Card and Std LP 2-port 10G RJ45 AOC with Intel X550 further enhances connectivity. The system is fortified with Supermicro -SPI TPM2.0 using SLB9670 for enhanced security and comes bundled with the Supermicro Management Software Suite Node License, offering comprehensive out-of-band management capabilities. This complete package is rounded off with the SOCKET E LGA4677, E1A XCC CARRIER, DG 1.0, RoHS Kit and is backed by a robust 3 Years Return to Base Warranty.
| Product SKUs | |
| SuperServer SYS-821GE-TNHR | |
| SuperServer SYS-821GE-TNHR-G1 Gold Series version with pre-configured components | |
| Motherboard | |
| Super X13DEG-OAD | |
| Processor | |
| CPU |
Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
|---|---|
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| Certification |
|
| System Memory | |
| Memory |
Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel® C741 |
| Network Connectivity |
2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) |
| Input / Output | |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software |
SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations |
Power-on mode for AC power recovery ACPI Power Management |
| Chassis | |
| Form Factor | 8U Rackmount |
|---|---|
| Model | CSE-GP801TS |
| Dimensions and Weight | |
| Height | 14" (355.6 mm) |
| Width | 17.2" (437 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 29.5" (H) x 27.5" (W) x 51.2" (D) |
| Weight |
Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED |
Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons |
Power On/Off button System Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration |
Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots Option A 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration |

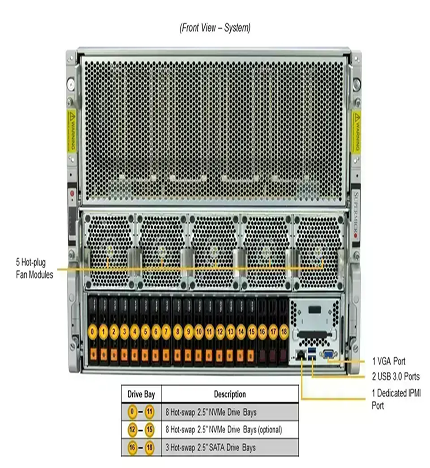

Default: Total 15 bays 12 front hot-swap 2.5" NVMe drive bays 3 front hot-swap 2.5" SATA drive bays Option A: Total 19 bays 12 front hot-swap 2.5" NVMe drive bays 4 front hot-swap 2.5" NVMe drive bays 3 front hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | 10 heavy duty fans with optimal fan speed control |
| Power Supply | |
| 6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies | |
| Dimension (WxHxL) | 106.5 x 82.1 x 245.5 mm |
| Input |
3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz 3000W: |
